AT new type of rack and pinion pneumatic actuator combines the latest technology at home and abroad, through CAD, Cinema, Mastercam, UG three-dimensional model of innovative design, the appearance of beautiful compact, modern modeling; and the use of practical new materials, Quality, more reliable performance; more specifications selection more affordable; products fully comply with the latest international standard technical specifications to meet the current and future needs.

1. Gear rack dual piston symmetrical structure design, fast and smooth action, high precision, the output power, by simply changing the piston assembly position can be reverse rotation.

2. Extruded naive aluminum alloy cylinder, the precision machining of the hole and the external surface of the hard anodizing treatment (in particular, anodized + Teflon coating), longer life, low coefficient of friction.

3. All-in-one design, all pairs of double acting and single acting actuators, all have the same cylinder and end cap, it is easy to change the mode of action by installing a spring or removing the spring.

4. Combined preloaded safety spring set, whether in the assembly process or the use of the site, can be convenient and safe installation or increase or decrease the number of springs.

5. External side of the two separate adjustment screw for the actuator has been installed on the valve is more accurate and convenient, adjust the valve opening and closing position, for full stroke adjustment, the other in the two end caps are equipped with longer adjustment screw The

6. Multi-function position indicator, field visual indication, in line with VID / VIE3845, NAMUR standard slot, can install and output all accessories, such as limit switch box, electrical positioner, position sensor.

7. Romantic interface with NRMAR standard, can be directly installed NUMAR standard solenoid valve.

8. The back of the rack of the composite material bearing and piston guide ring and the output shaft bearings, etc. to prevent metal-to-metal friction, and increase the lubrication, so that low friction, long life.

9. All fasteners are made of stainless steel, long-term corrosion resistance.

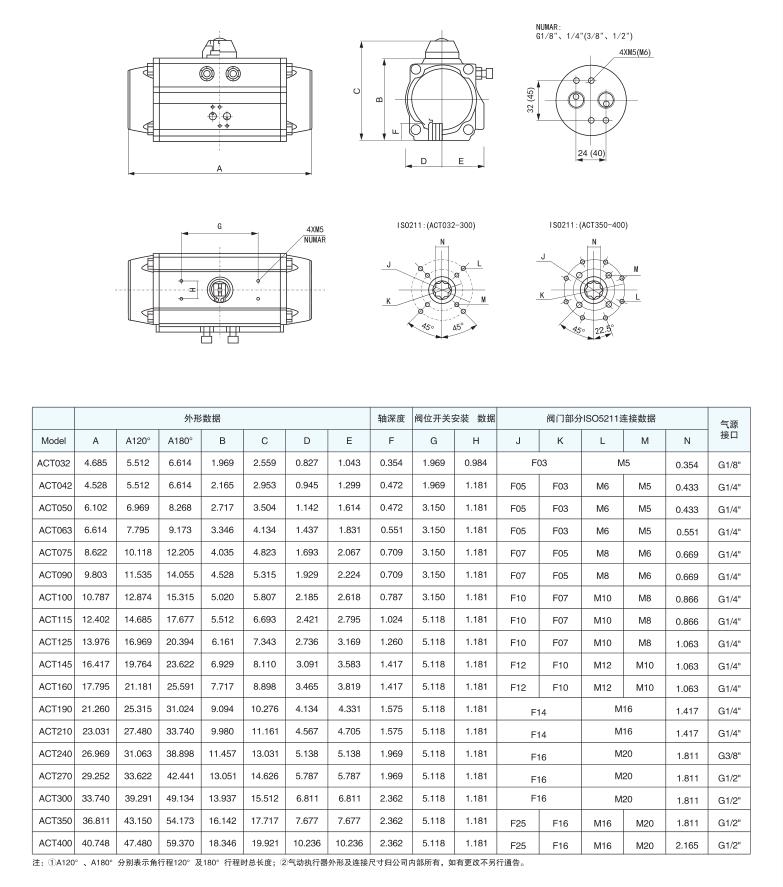

10. The connection part conforms to the new international standard specification ISO5211, DN3337 (F03-F25) The use of the product is interchangeable and versatile.
